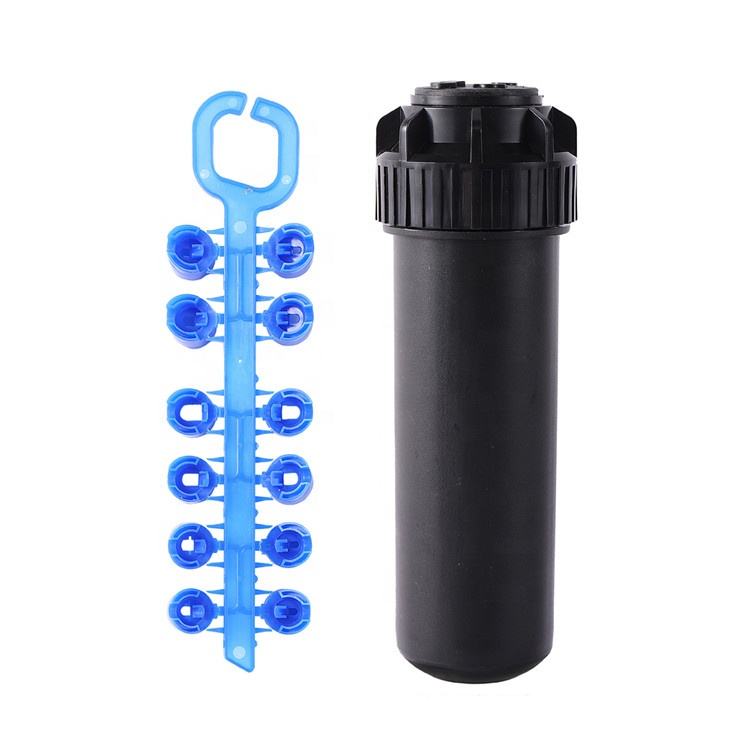

The 3/4″ Gear-Driven Pop-Up Sprinkler is a high-performance irrigation solution designed to provide uniform watering for lawns, gardens, sports fields, parks, golf courses, and commercial landscapes. Unlike traditional impact sprinklers, the gear-driven rotor operates quietly while delivering smooth and accurate rotation for improved irrigation efficiency.

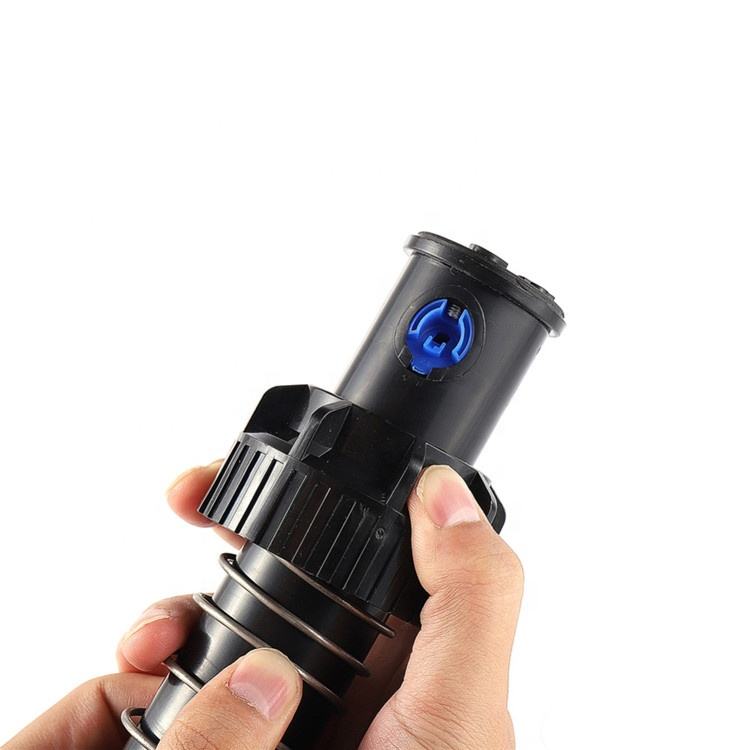

When the irrigation system is activated, the sprinkler rises from below ground level to irrigate the selected area before retracting neatly when watering is complete, maintaining a clean and unobstructed landscape.

The adjustable spray arc can be set from 40° to a full 360°, allowing flexibility for partial-circle or full-circle watering. Operating efficiently between 2.0 and 5.0 bar, it delivers a flow rate of 0.1-3.2 m³/hour and covers a radius of 8-13 meters, depending on pressure and nozzle selection.

Manufactured from durable UV-resistant engineering plastic, this sprinkler is built for reliable long-term performance in demanding outdoor environments.

Key Features

• Gear-driven rotor mechanism for smooth and quiet operation
• Pop-up design remains hidden when not in use
• 3/4″ female threaded inlet
• Adjustable spray arc from 40° to 360°
• Coverage radius of 8–13 metres
• Flow rate of 0.1–3.2 m³/hour
• Operating pressure of 2.0–5.0 bar
• Uniform water distribution
• UV-resistant, weatherproof construction
• Suitable for automatic irrigation systems

Installation Guidelines

1. Install on a 3/4″ irrigation pipeline.
2. Connect to the underground irrigation network.
3. Set the desired watering arc between 40° and 360°.
4. Ensure operating pressure remains between 2.0–5.0 bar.
5. Test and adjust the sprinkler for uniform coverage.
